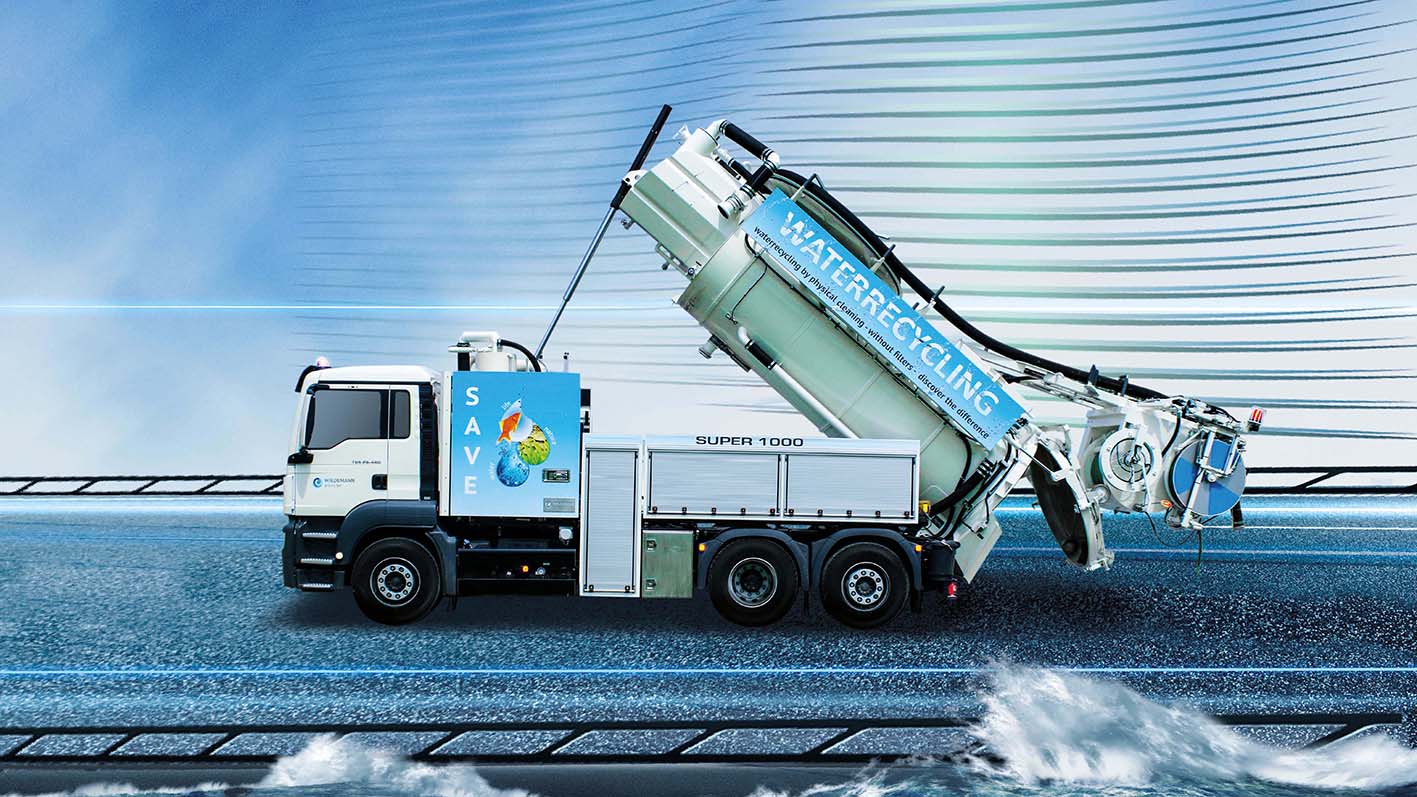

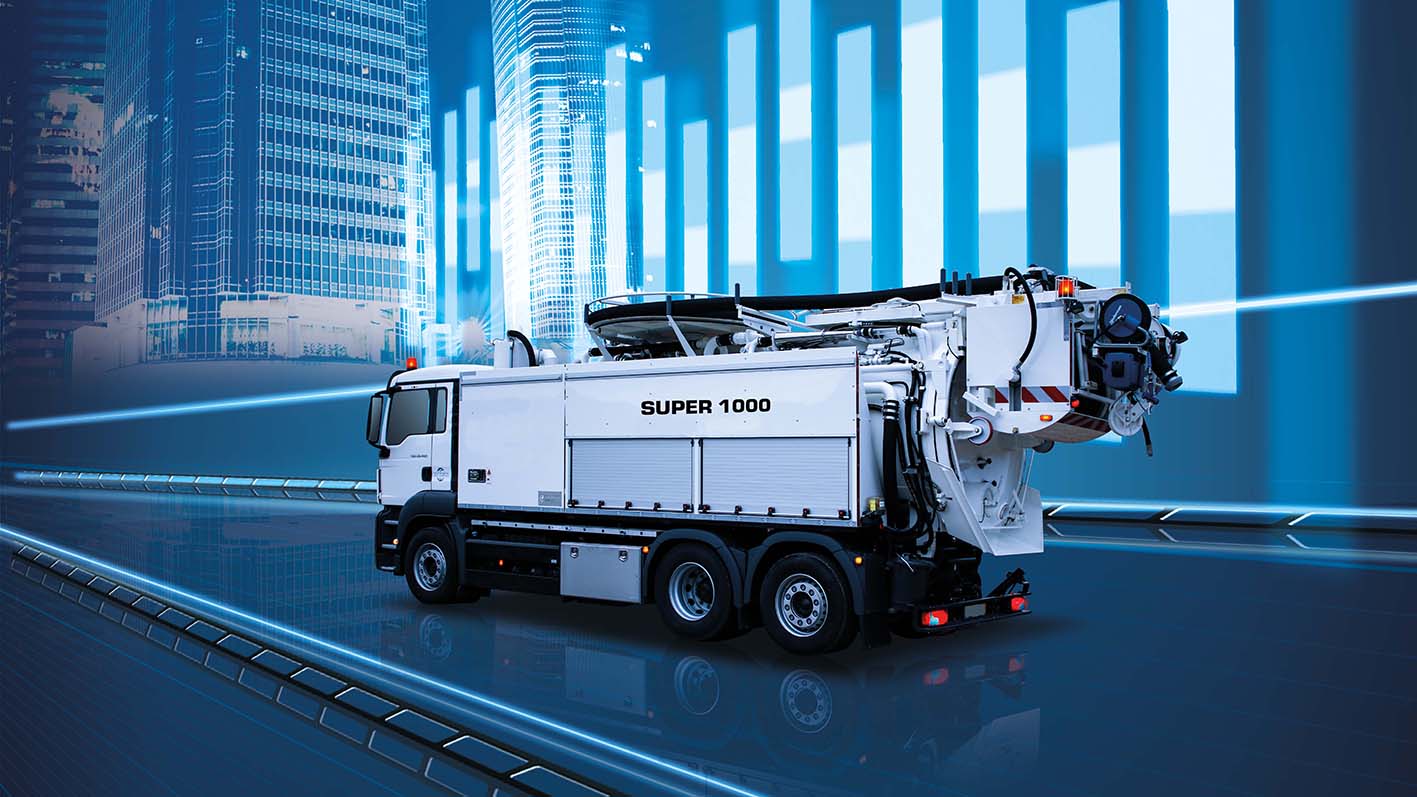

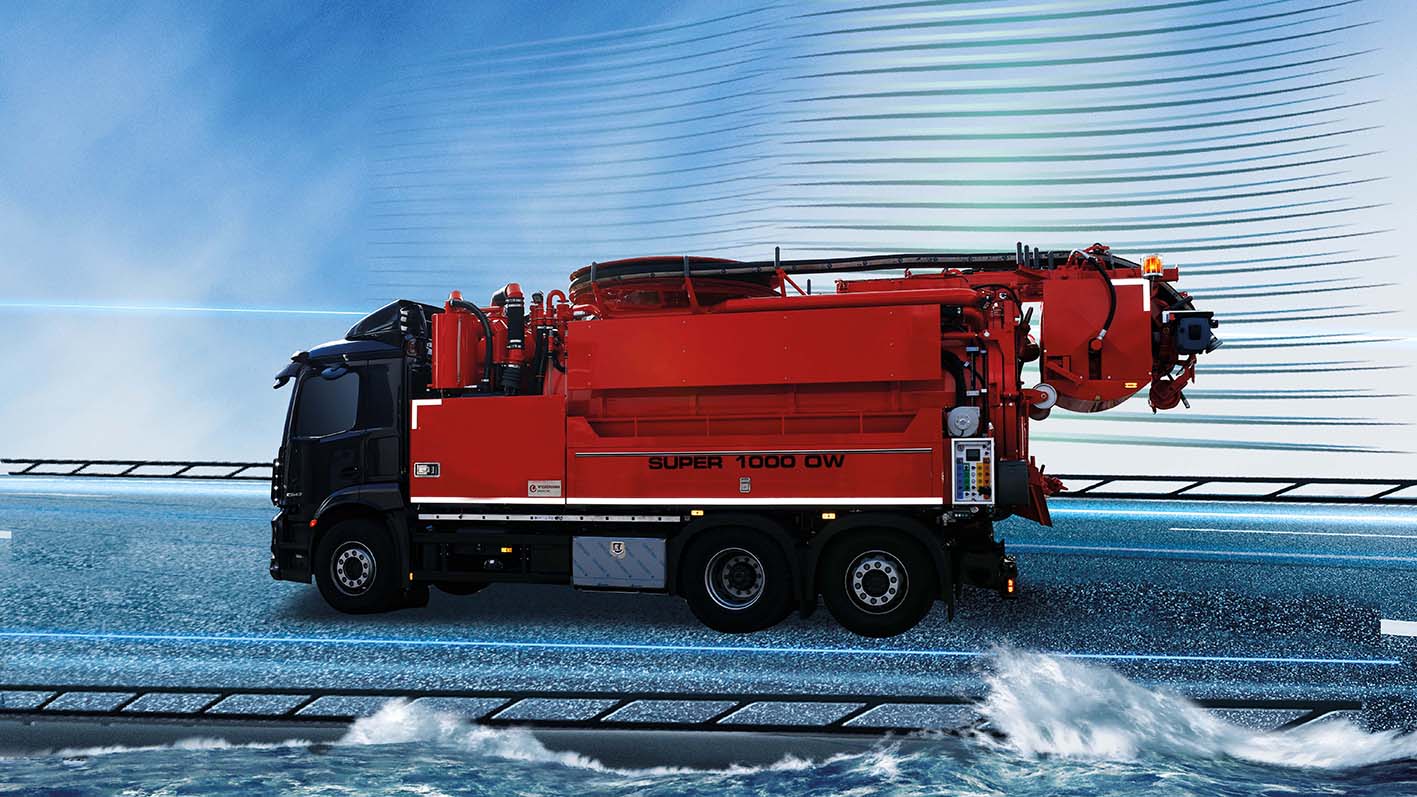

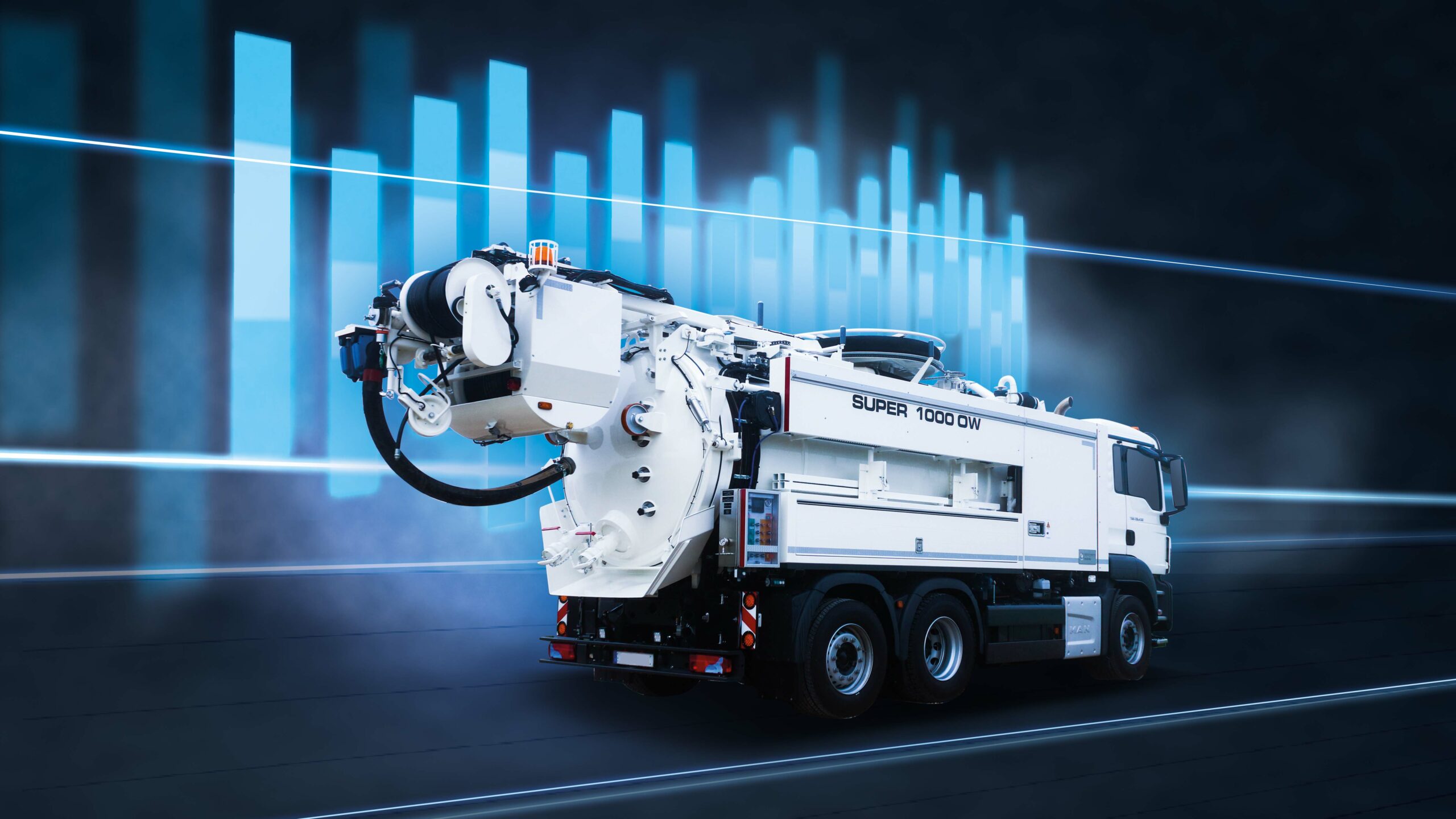

SUPER 1000 is a sewer cleaning vehicle with one-tank-system, one of the most versatile recirculators on the market with a range of available configurations.
The SUPER 1000 is equipped with our specially developed water recycling system with a bell-shaped closure. The system can be completely sealed off so the sludge tank can be used also to suck up e.g. fatty substances without any risks to the components of the water recycling system.
As an option, it is even possible to use the entire volume of the sludge and water compartment as a fresh water reservoir by means of a connecting pipe. This means that the entire volume can be used purely for flushing work.
With or without waterrecycling.

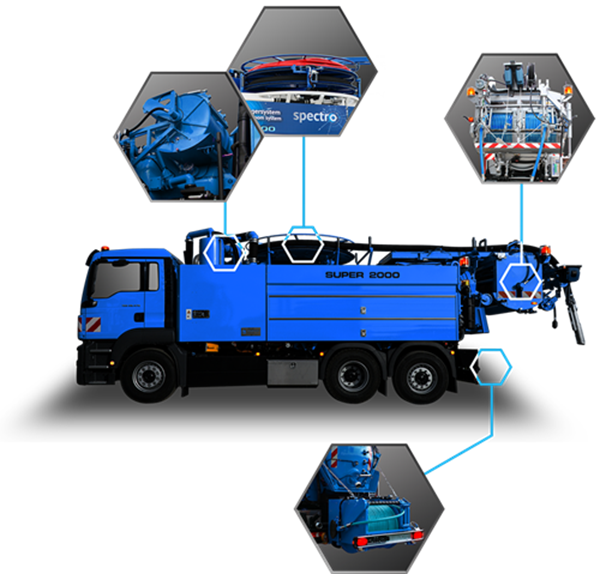

HP-hose reels
- HP reels available up to a hose capacity up to approx. 300 m DN 32 or 500 m DN 25
At the boom:
- the boom carries along the high-pressure reel while swivelling
- all hoses directly at the workplace
- clearly visible working position
- comfortable passage height
- short wheelbase, small turning circle
Between drivers cabin and sludge tank:
- short overhang, generous headroom at the rear of the vehicle
- ideally suited in combination with booms with a large working area (e.g. SPACER front)
Tandem-hose-reel
- two jetting reels which can be operated separately, simultaneously or synchronously
- mounted at the boom
- designed for 180 m DN 25 (1″) or 160 m DN 32 (1 1/4″) each or combinable
- ideally suited for two HP-pumps
On the top of the tank:
- in combination with SPECTRO 360° boom
- suction hose and HP reel arranged on the top of the tank in the centre of gravity of the vehicle
- optimal weight distribution, short wheelbase, small turning circle
- flat, compact design
Additional reel to be attached to the underride guard
- designed for approx. 300 m DN 38 (1 1/2″)
- for extra-long ranges
- with hose guide, pressure roller, drive and hydraulic connector
- Reel rotation direction electrohydraulically controlled by control panel/radio remote control

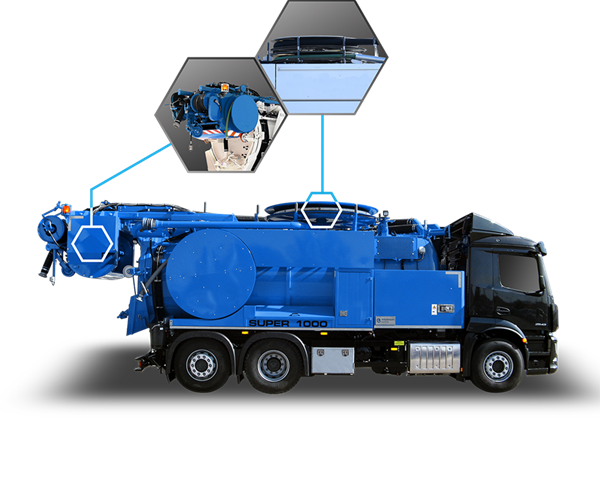

Transport reels for suction hoses
- operation by hydraulic motor with multi-disc-brake
- only a transportation reel, no suction can be done through this reel
(suction through the reel on request)
On the side of the vehicle:
- designed for approx. 30 m suction hose DN 75 (3”)
At the boom:
- designed for approx. 15-20 m suction hose DN 75 (3”)
On top of the tank
- arranged horizontally under the suction hose reel
- designed for approx. 30 m suction hose DN 75 (3”)

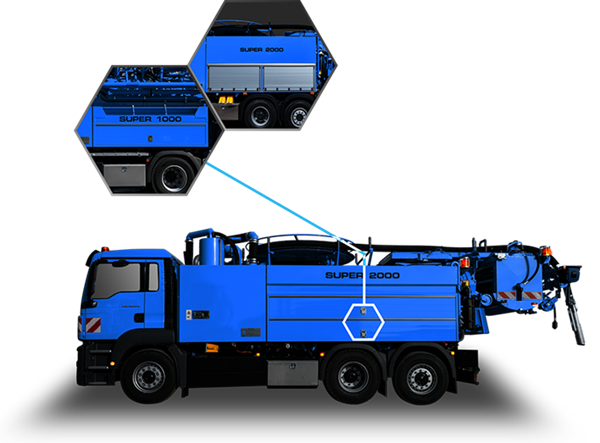

Tool cabinets
With flaps:
- for one-tank system with a flap, optionally with a hose tray above
- for two-tank system with two flaps on top of each other
- made of aluminium
- With covered gas springs to be fixed in an opened position, lockable
With roller shutters:
- with one or two side by side positioned and lockable roller shutter doors on each side
- available for one- and two-tank-system

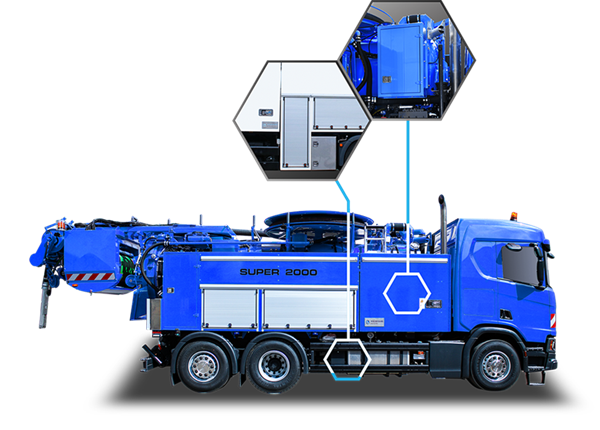

Clothes lockers
- with lighting
- foldable clothes rail
- ventilation
- drainage
In pump room / behind pump room doors:
- optionally with heating
Integrated in the vehicle contour:
- arranged at the rear of the vehicle in a low position
- with heating
XXL-Locker:
- suitable for one-tank-system
- high version pulled down between the axles
- with roller shutter
- with heating

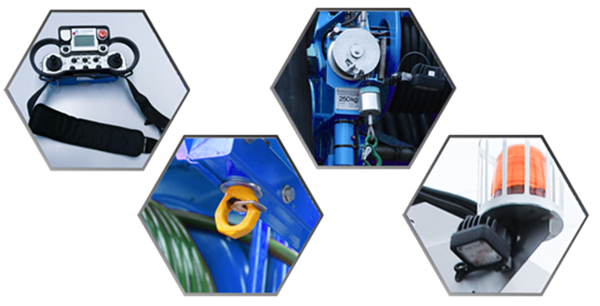

Further information on additional equipment for work safety, control units and lighting is available on request.
