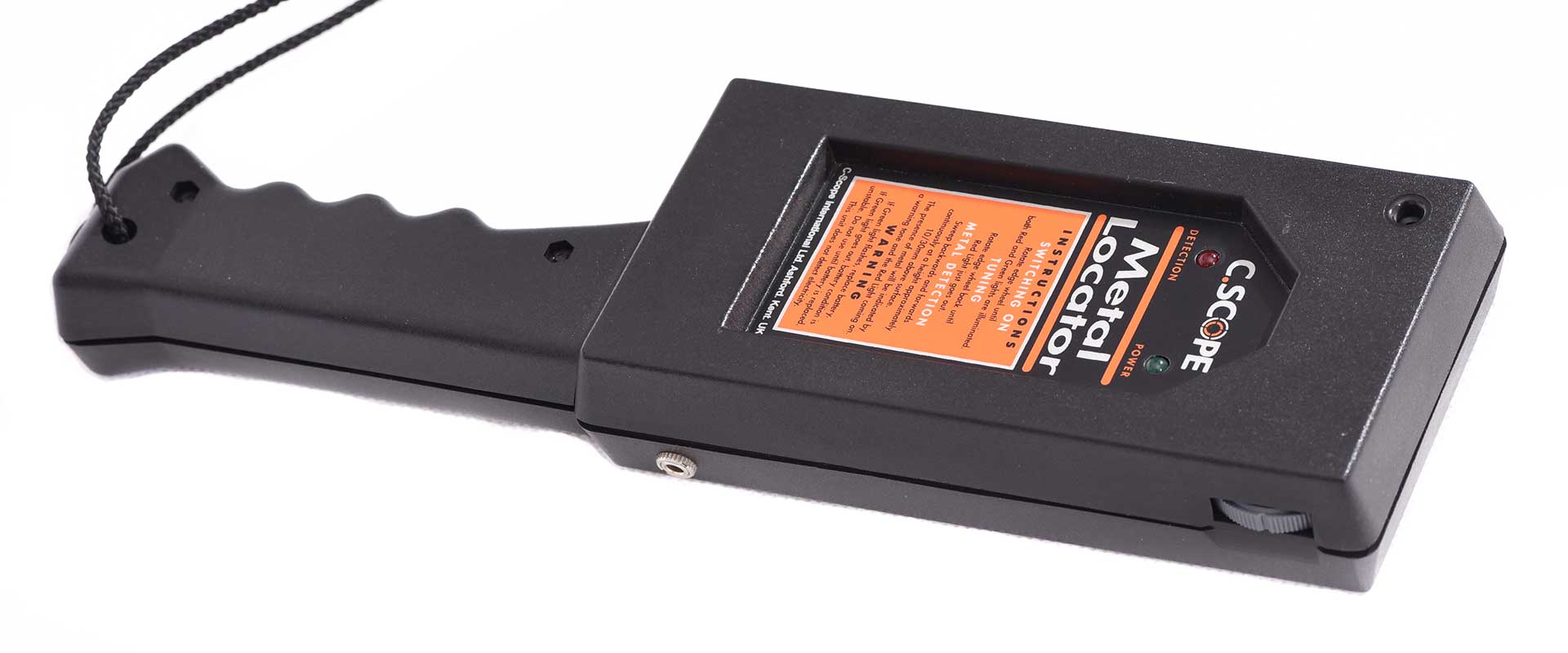

HHB C Wall Searching Metal Detector

DESCRIPTION

This high-performance wall, wood and cloth searching metal detector from C.Scope International Limited is perfectly designed to meet the exacting standards required by the building, construction, timber reclamation and clothing industries.

Typical applications in the construction industries include the precise location of metal pipes and cables prior to drilling in walls and ceilings, pinpointing cavity wall ties and marking the position of steel reinforcing rods in concrete.

For the timber reclamation industry, the C.Scope handheld Metal Locator can quickly and effectively detect nails and screws embedded in reclaimed timber whilst for the textile industry it is the solution for finding small metal objects such as pins or staples concealed in finished items.

The Metal Locators twin search coil technology provides high sensitivity to a wide range of metal objects with negligible interference from damp walls or dense covering materials.

OVERVIEW

  • High sensitivity, twin coil induction balance metal detector.

  • Dimensions 9cm x 28cm x 3.2cm

  • PP3 type battery power source. Low battery indication.

  • Long battery life.

  • Normal operating temperature range -9º to +54ºC.

  • High impact ABS construction. Comfortable to hold and lightweight.

  • Audio and visual indication of metal.

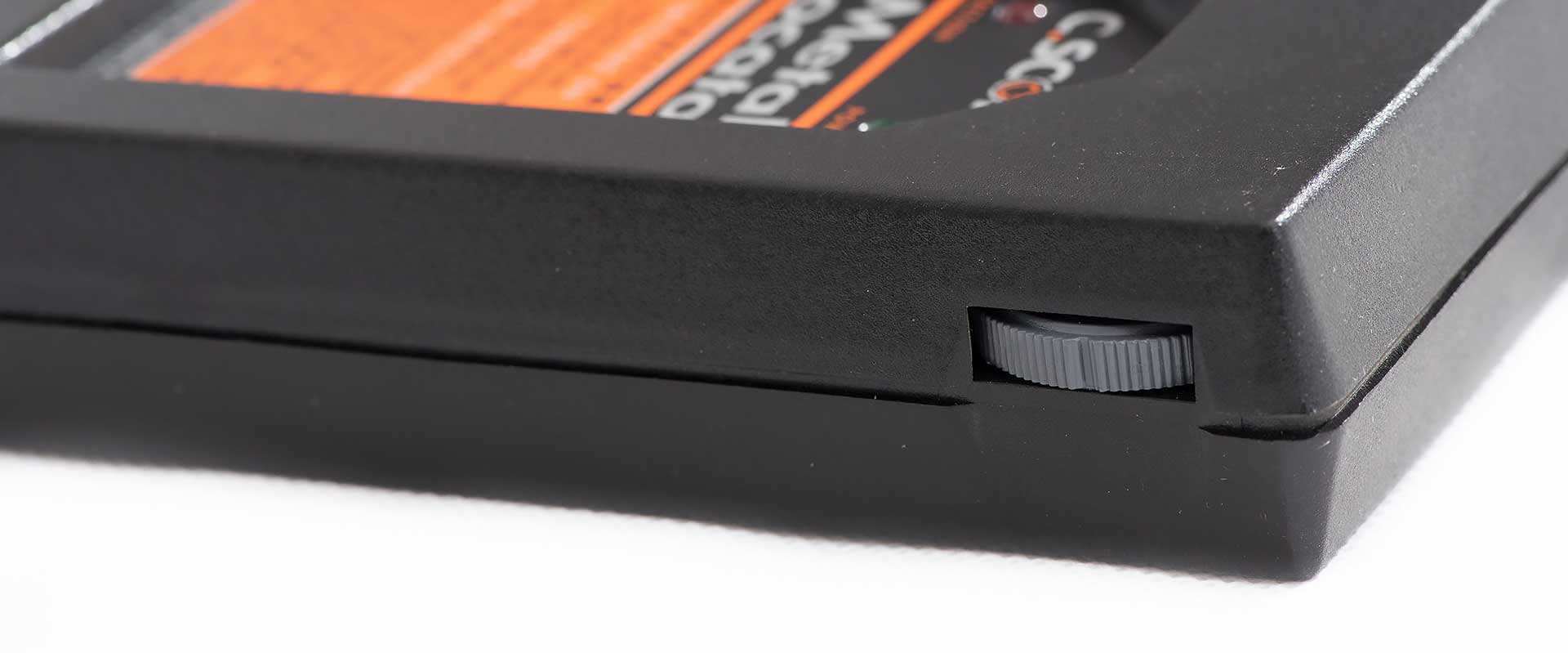

  • Simple, single control operation. No specialist  knowledge required.

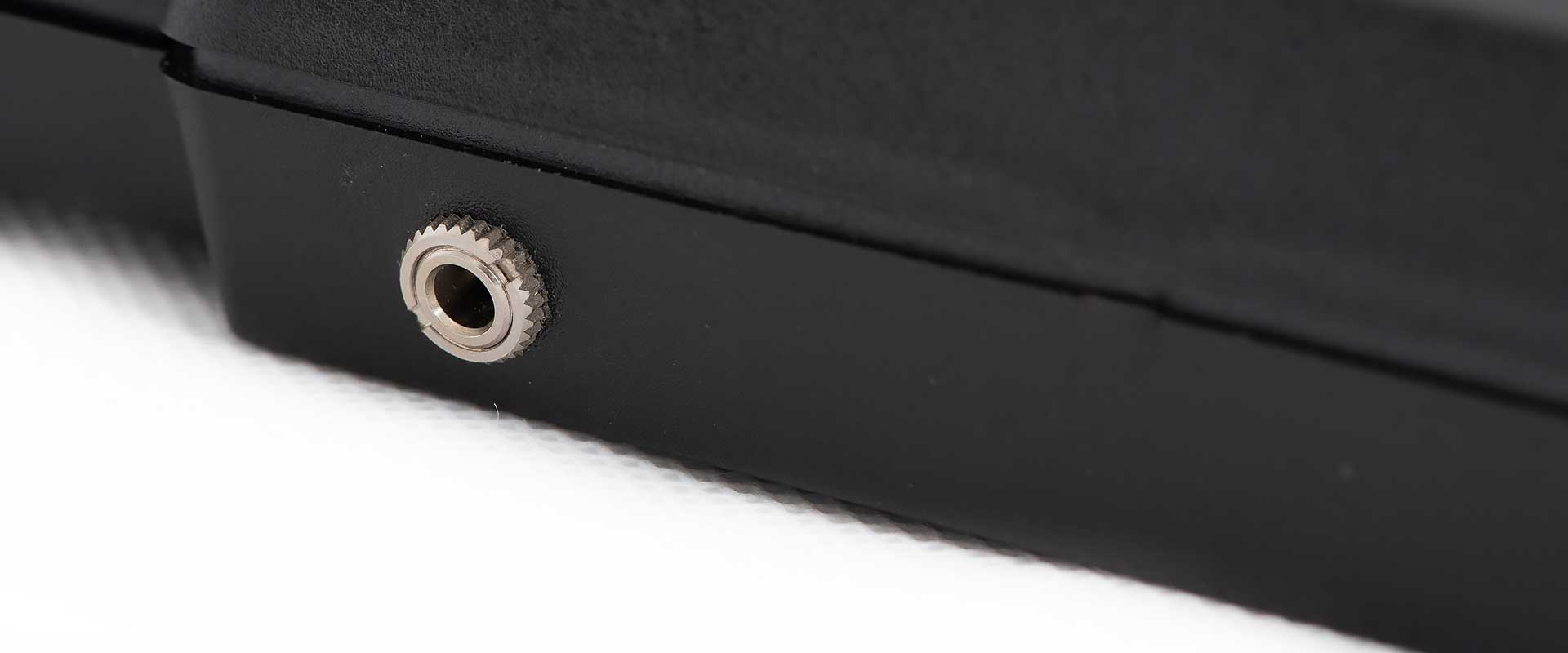

  • Earphone socket, for use in noisy work situations.

SPECIFICATION

Product Name
HHB C WALL SEARCHING METAL DETECTOR

Part No.
HHB C

Dimensions
9cm x 28cm x 32cm

Detection Range Guide
13amp power cable up to 13cm
15mm copper pipe up to 18cm
Steel reinforcing bar up to 15cm
Cavity wall tie up to 15cm
30mm iron nail up to 13cm

Battery
1 x PP3 (IEC type 6LR61)

Battery Life
Long
