Accessories C.Scope

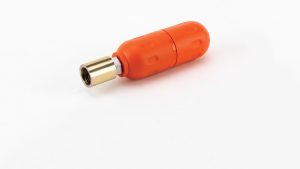

A C.Scope 8kHz General Purpose Sonde is a small battery powered transmitter hermetically sealed in a robust torpedo shaped case which which can be screwed onto the end of a drain rod and fed into a pipe. The pipe direction can be then be traced using a C.Scope Precision Pipe and Cable Locator. The location of a pipe blockage can be identified using this system with enormous cost saving potential.

OVERVIEW

• Green case to identify the 8kHz version.
• 8kHz transmit signal allowing detection and tracing by a C.Scope Precision Pipe and Cable Locator.
• Simple to use.
• Very robust.
• Single AA battery operation.
• Fully weatherproof design to IP68.
• Adaptors available for different Drain Rod types.

SPECIFICATION

Product Name
General Purpose Sonde 8kHz

Part No.
YIRS-8

Construction
Waterproof robust plastic.

Operating frequency
8192Hz continuous.

Range
5 – 7 metres dependant on Locator.

Dimensions
38mm diameter.
102mm length.

Fitting
M10 stud

Battery
1 x AA (IEC type LR6) typically giving up to 50 hours intermittent use at 20C.

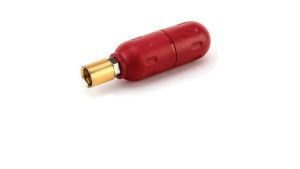

To address the problems of detecting the position of a blockage or other relevant feature within a metal pipe, the C.Scope Metal Pipe Sonde is specially designed with a low frequency signal output that is capable of being transmitted through the metal pipe walls to the surface. This makes it ideal for finding the position of blockages in metal pipes or for use with a camera and is powerful enough to be detectable at up to 5 metres depth with a C.Scope Precision Pipe and Cable Locator (dependant on pipe material and wall thickness).

OVERVIEW

• Red case to identify as the Low Frequency Sonde.
• 512Hz or 640Hz transmit signal allowing detection and tracing by a C.Scope Precision Pipe and Cable Locator.
• Simple to use.
• Very robust.
• Single AA battery operation.
• Fully weatherproof design to IP68.
• Compatible with most drain rods.
• Resin sealed electronics.

SPECIFICATION

Product Name
Metal Pipe Sonde

Part Numbers
YIRS-512 and YIRS-640

Operating frequency
Transmits 512Hz and 640Hz respectively

Range
Up to 5 metres with a C.Scope Precision Pipe and Cable Locator (dependant on pipe material and wall thickness).

Dimensions
39mm diameter.
121mm length.

End fitting
M10 threaded stud supplied with 7 t.p.i. rod fitting (other adaptors are available).

Battery
1 x AA (IEC type LR6) typically giving up to 25 hours intermittent use at 20C.

Approvals
EN301489
EN300 330
EAN 5060086350791

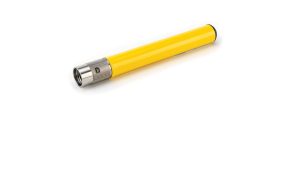

The Duct Sonde 33KHz from C.SCOPE is a transmitter used to trace the direction of small and congested ducts or conduits. The C.Scope 33KHz Duct Sonde is a small battery powered transmitter which can be screwed onto the end of a duct rod and inserted and fed into a a duct or conduit. The direction of the duct or conduit can then be traced by a C.Scope locator set to Generator/ Transmitter Mode. The location of a blockage can be identified using this system with enormous cost saving potential. Often the standard sized Sonde is too large to pass between cables when tracing electrical, telecommunication or cable conduits or ducts. The solution is the C.Scope 33kHz Duct Sonde. The small diameter Duct Sonde, developed in conjunction with British Telecom, can be fed easily inside ducting without snagging.

OVERWIEV

• 33kHz transmit signal allowing detection and tracing by a Cable Avoidance Tool.
• Simple to use.
• Very robust.
• Same diameter as Duct rod.
• Single AAA battery operation.
• Low battery signal.
• Fully weatherproof design to IP65
• Compatible with most rods.
• Resin sealed electronics.

SPECIFICATION

Product Name
Duct Sonde 33kHz

Part No.
YIRSDS-33

Construction
Waterproof, robust plastic, O Ring battery compartment seal, stainless steel end fittings.

Operating frequency
32,768Hz continuous.

Range
3.5 – 4.5 metres dependant on Locator.

Dimensions
24mm diameter.
200mm length.

Fitting
Standard rod thread (3/4″ Whitworth 10 T.P.I.), female connector at one end.

Battery
1 x AAA (IEC type LR03) Alkaline typically giving up to 20 hours intermittent use at 20C.
Battery low indicated by pulsed 32,768Hz signal.

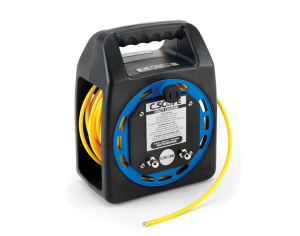

The unique C.Scope Plastic Pipe Tracers are designed specifically to allow SMALL diameter, non-metallic pipes to be traced. C.Scope Plastic Pipe Tracers are the smallest diameter product on the market and can be successfully inserted into pipes when nothing else fits. Their unique construction gives unparalleled reliability and yet allows both line tracing AND the all important end tracing using the remarkable Sonde technology housed at the very tip of the Tracers.

Utilities and utility contractors have, for years, used Sondes to follow non-metallic main service pipes underground and to record their route or locate the position of blockages within those pipes. However, with pipes less than 2”or 50mm in diameter, standard sized Sondes are simply too large to fit into the pipe or to negotiate the tighter bends often found on these pipes runs.

Developed as a result of requests from the British gas industry, in need of a solution to the problem of tracing their small diameter non-metallic pipes, C.Scope designed the world’s smallest Sonde that is actually moulded into the tip of 6mm diameter plastic pipe tubing. Its uniform diameter allows easy use with any proprietary ‘live insertion’ gland and the flexibility of the plastic tubing and the Sonde itself make it ideally suited to successfully negotiating the tightest swept bends or even 90 degree elbows often encountered on the smaller pipes.

Stored on a compact reel, weighing less than 2kg, the C.Scope 20 metre and 50 metre Plastic Pipe Tracers are the ideal solution for small diameter non-metallic pipe tracing and can be used with any Pipe and Cable Locator and Signal Generator operating at 33kHz. Both the line of the pipe and the end point can be quickly and accurately identified at depths up to 4 metres.

Comes in 20 metre or 50 metre lengths.

OVERVIEW

• Extremely small diameter can be used in pipes down to 10mm.
• Highly robust, resistant to kinking.
• Available in 20metre and 50metre lengths.
• Full length or tip only detection capability.
• Water and gas proof.
• Uniform diameter to allow easy use with any proprietary insertion gland.

SPECIFICATION

Product Name
20m and 50m Plastic Pipe Tracer

Part Nos.
YIRPPT20-33 and YIRPPT50-33

Frequency
Operates at 32,768Hz

Detection Depth Range
Line Detection: 3m (dependent upon Locator and Signal Generator type and site conditions)
Tip Detection: 4m (dependent upon Locator and Signal Generator type and site conditions)

Compatibility
Any Signal Generator or Transmitter with 33kHz or 33/131kHz combined output

Rod Length
20m or 50m

Rod and Sonde Diameter
6mm

Rod Minimum Bend Radius
50mm

Construction
Reel: Robust plastic housing
Rod: Flexible, chemical resistant plastic

Reel dimensions (20m)
150 x 120 x 250mm

Reel dimensions (50m)
165 x 290 x 240mm

Reel weight (20m)
1248 g

Reel weight (50m)
2073 g

Operational Temperature Range
-20ºC to 50ºC

Storage Temperature Range
-20ºC to 50ºC

IP rating for actual Tracer Rod & Tip
68

IP rating for Plastic Pipe Tracer Casing
54

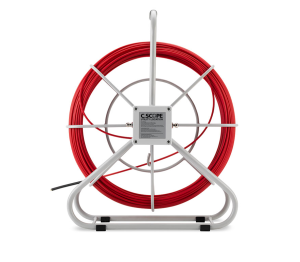

The Flexible Tracer is highly effective at locating and tracing the route of small diameter, non-metallic ducts, pipes, sewers and drains. When used with any C.Scope Cable Locator and Signal Generator, both the route of a non-metallic pipe and a particular end point can be pinpointed with the Flexible Tracer. This is particularly useful for identifying the position of any blockages or obstructions within the pipe. If a depth measuring Locator is being used then it is also possible to know the depth of the pipe/blockage.

The Flexible Tracer is lightweight and compact making it very easy to transport. It comprises a 6mm diameter, 80m long continuous fibreglass rod housed in a strong reel that rotates on an axle. The axle has a slip-ring allowing the Signal Generator to remain connected to the Connection Terminals of the Flexible Tracer whilst it is being inserted into the pipe to be traced. A tiny Sonde is built into the tip of the Flexible Tracer allowing the end point of the Tracer to also be located. Uniquely, this Sonde is also flexible allowing the Flexible Tracer to negotiate bends in a pipe that would ordinarily stop a conventional Sonde from getting past.

There are two main methods for tracing the route of non-metallic pipes using the Flexible Tracer:

Line Location – Feed the rod into the pipe/duct and attach one Direct Connection lead of a Signal Generator to one connection terminal of the Tracer and the other Direct Connection lead to an Earth Stake. The Rod can then be located thus identifying the route of the pipe.

Tip/Sonde Location – Feed the rod into the pipe/duct and attach one Direct Connection lead of a Signal Generator to one connection terminal of the Tracer and the other Direct Connection lead to the other terminal. This energizes the Sonde at the tip of the Flexible Tracer allowing the end point and the depth of the Flexible Tracer to be identified.

OVERVIEW

• Fibreglass rod inside a drum cage mounted in a tubular steel frame.
• 80m of 5mm diameter flexible fibreglass rod with fully integrated 9.5mm diameter Sonde.
• Integral Sonde for tip tracing.
• Integral wire for line tracing.
• Slip Ring allowing drum rotation when in use.
• Rotation brake.
• Unique flexible Sonde performs even in tight angles.
• Robust but lightweight construction.

SPECIFICATION

Product Name
80 m Flexible Tracer

Part No.
YIRRFT-80

Frequency
Optimised for 32,768Hz

Detection Depth Range:
Line Detection 3 m (dependent upon Locator and Signal Generator type and site conditions)
Tip Detection 4 m (dependent upon Locator and Signal Generator type and site conditions)

Compatibility
Any Signal Generator or Transmitter with 33kHz or 33/131kHz combined output

Rod Length
80 m

Rod Diameter
5 mm nominal

Rod Material
Quality sleeved fibreglass rod with three integral copper wires

Rod Minimum Bend Radius
10 cm (reducing to 15 cm, 5 cm from Tip)

Rod wire diameter
0.45 mm each wire

Tip Length
160 mm.

Tip Diameter
9.5 mm.

Tip Material
Brass

Frame Size
58.8 x 28.8 x 48.5 cm

Frame Material
Powder coated 16 mm steel tube

Reel Diameter
48 cm

Weight
7.5 kg

Slip ring assembly
Sealed multi-wire duplexed

Operational Temperature Range
-20ºC to 50ºC

Storage Temperature Range
-20ºC to 50ºC

IP rating
for Tracer Rod & Tip 68
for Casing 54
for Terminal Box 66

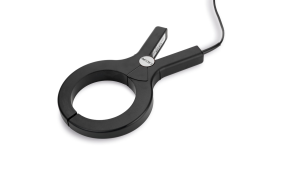

The C.Scope Signal Clamp allows operators to apply the Signal Generator/ Transmitter signal effectively to any cable. It is an extremely practical way to allow individual cables to be traced even when the cable is in amongst other cables.

SPECIFICATION

Product Name
Signal Clamp

Part No.
YIRC-33-8

Construction
Toroidal induction ring housed in robust plastic.
Spring loaded jaws.

Optimisation
Tuned for optimum use with 33kHz Signal Generators.

Safety
Built to conform to BSEN61010-1:1993 and BSEN 61010-2-032:1995

Dimensions
270 x 160 x 28mm

Compatibility
Maximum service diameter = 105mm
Suitable for use with all C.Scope Signal Generators and Transmitters.

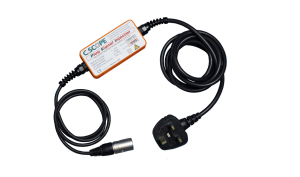

The C.Scope Signal Injector is an accessory which when connected to a C.Scope Signal Generator or Transmitter applies a signal safely to an electrical system via a conventional 3-pin power socket. This signal will then be detectable on the buried supply cable outside the building and any supply cables within the property. To transmitted signal can then be detected by a C.Scope Cable Avoidance Tool or Precision Pipe and Cable Locator.

OVERVIEW

• Високоефективна передача сигналу генератора на кабель електроживлення.
• Ізолює генератор сигналу від електроживлення для безпеки.
• Типи вилок: британська (UK) або шукована (Schuko).
• Повністю захищений від впливу погодних умов відповідно до стандарту IP65.
• Може використовуватися з усіма локалізаторами, генераторами та передавачами C.Scope.

SPECIFICATION

Product Name

Signal Injector

Part No.
YIRIP-33-8

Dimensions
Box: 100mm x 50mm x 25mm
Input Lead: 1m
Output Lead: 1.5m

Construction
Encapsulated, robust housing
Moisture / dust resistant to IP54

Electrical Output (Mains side)
Electrical Isolation: Class II (Double Insulated)
Mains Plug Connector: UK, 3 pin to BS1363, load between Live and Earth or 2 pin European Shuko style
Maximum Voltage: 250 V rms
Maximum Load: <10mA (predominantly capacitive)
Frequency range: 45-65 Hz

Electrical Input (Signal Generator side)
Connector: 3 pin XLR male (industry standard)
Maximum Voltage: 42 V rms
Maximum Power: <250mW when driven from SGA or SGV
Input Impedance: 2000 Ohms
Frequency: 33 kHz

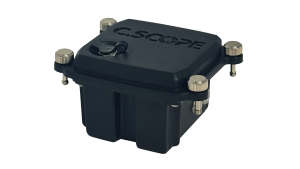

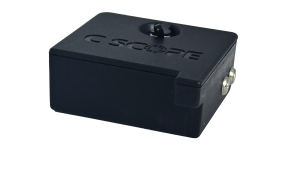

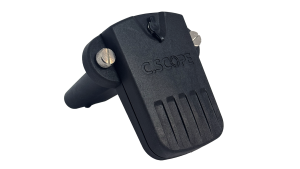

Charging You can use your battery pack right away. To maximise the life of your battery pack you should charge it fully before you use it. Connect either the supplied vehicle or wall charger and follow the instructions in Vehicle Charging or Mains Charging.

Fitting

The battery pack fits in the battery compartment of your Locator, CS880, Transmitter or Signal Generator, in place of your alkaline batteries. Remove any existing batteries and insert the battery pack. For full instructions see Fitting in a Locator, Fitting in a Transmitter or Signal Generator, or Fitting in a CS880.

Handling

Avoid disassembling, crushing, or puncturing the battery. Do not short the external contacts, expose it to temperatures above 60°C, or subject it to excessive shock or vibration. Keep it away from children and do not use a damaged battery. If a battery pack leaks, do not touch the fluids and dispose of it, as described below.

Storage

To prevent fires, store the battery packs in the supplied packaging when not in use. You should consider using a lithium-ion battery storage cabinet, which may offer fire protection.

Transport

C.Scope Battery Packs are subject to legislation on the transport of dangerous goods. When a battery pack is transported, special requirements on packaging and labelling apply. Do not ship damaged battery packs.

Disposal

C.Scope Battery Packs should be recycled at permitted facilities and not thrown away in household trash or recycling bins. They contain chemicals that can catch fire and explode, and high-capacity batteries can also deliver an electric shock. You can take lithium-ion batteries to a local recycling centre or hazardous waste collection point. You can check with your local authority or vendor to see if they offer recycling services.

Charging You can use your battery pack right away. To maximise the life of your battery pack you should charge it fully before you use it. Connect either the supplied vehicle or wall charger and follow the instructions in Vehicle Charging or Mains Charging.

Fitting

The battery pack fits in the battery compartment of your Locator, CS880, Transmitter or Signal Generator, in place of your alkaline batteries. Remove any existing batteries and insert the battery pack. For full instructions see Fitting in a Locator, Fitting in a Transmitter or Signal Generator, or Fitting in a CS880.

Handling

Avoid disassembling, crushing, or puncturing the battery. Do not short the external contacts, expose it to temperatures above 60°C, or subject it to excessive shock or vibration. Keep it away from children and do not use a damaged battery. If a battery pack leaks, do not touch the fluids and dispose of it, as described below.

Storage

To prevent fires, store the battery packs in the supplied packaging when not in use. You should consider using a lithium-ion battery storage cabinet, which may offer fire protection.

Transport

C.Scope Battery Packs are subject to legislation on the transport of dangerous goods. When a battery pack is transported, special requirements on packaging and labelling apply. Do not ship damaged battery packs.

Disposal

C.Scope Battery Packs should be recycled at permitted facilities and not thrown away in household trash or recycling bins. They contain chemicals that can catch fire and explode, and high-capacity batteries can also deliver an electric shock. You can take lithium-ion batteries to a local recycling centre or hazardous waste collection point. You can check with your local authority or vendor to see if they offer recycling services.

Charging You can use your battery pack right away. To maximise the life of your battery pack you should charge it fully before you use it. Connect either the supplied vehicle or wall charger and follow the instructions in Vehicle Charging or Mains Charging.

Fitting

The battery pack fits in the battery compartment of your Locator, CS880, Transmitter or Signal Generator, in place of your alkaline batteries. Remove any existing batteries and insert the battery pack. For full instructions see Fitting in a Locator, Fitting in a Transmitter or Signal Generator, or Fitting in a CS880.

Handling

Avoid disassembling, crushing, or puncturing the battery. Do not short the external contacts, expose it to temperatures above 60°C, or subject it to excessive shock or vibration. Keep it away from children and do not use a damaged battery. If a battery pack leaks, do not touch the fluids and dispose of it, as described below.

Storage

To prevent fires, store the battery packs in the supplied packaging when not in use. You should consider using a lithium-ion battery storage cabinet, which may offer fire protection.

Transport

C.Scope Battery Packs are subject to legislation on the transport of dangerous goods. When a battery pack is transported, special requirements on packaging and labelling apply. Do not ship damaged battery packs.

Disposal

C.Scope Battery Packs should be recycled at permitted facilities and not thrown away in household trash or recycling bins. They contain chemicals that can catch fire and explode, and high-capacity batteries can also deliver an electric shock. You can take lithium-ion batteries to a local recycling centre or hazardous waste collection point. You can check with your local authority or vendor to see if they offer recycling services.

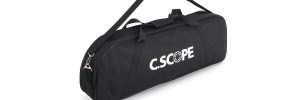

The C.Scope CS880 Carry Bag is designed specifically to keep your CS880 Metal Cover Locator safe when not in use and will still have capacity to carry additional locating accessories. Larger Carry Bags for Cable Avoidance and Cable Detection products are also available.

SPECIFICATION

Product Name
CS880 Carry Bag

Part No.
YCBM

Dimensions
30 x 16 x 85cm

Capacity
38 Litres

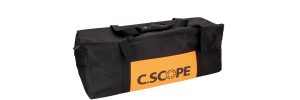

A C.Scope Carry Bag will keep your C.Scope Pipe & Cable Locator Equipment & Accessories safe when not in use and will still have capacity to carry the additional locating accessories such as site maps, marker paint or pegs to site each time. Choose between the Professional Carry Bag that has specific compartments for each item or the Budget Carry Bag that is a loose holdall type of construction.

SPECIFICATION

Product Name
Professional Carry Bag

Part No.
YCB/CS

Dimensions
22 x 23 x 76cm

Capacity
38 Litres

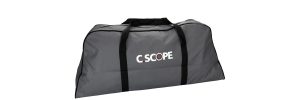

A C.Scope Carry Bag will keep your C.Scope Pipe & Cable Locator Equipment & Accessories safe when not in use and will still have capacity to carry the additional locating accessories such as site maps, marker paint or pegs to site each time. Choose between the Professional Carry Bag that has specific compartments for each item or the Budget Carry Bag that is a loose holdall type of construction.

SPECIFICATION

Product Name
Large Carry Bag

Part No.
YCBL

Dimensions
33 x 25 x 89cm

Capacity
72 Litres
